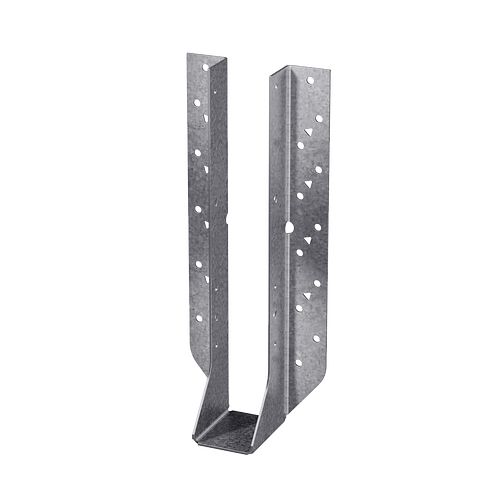

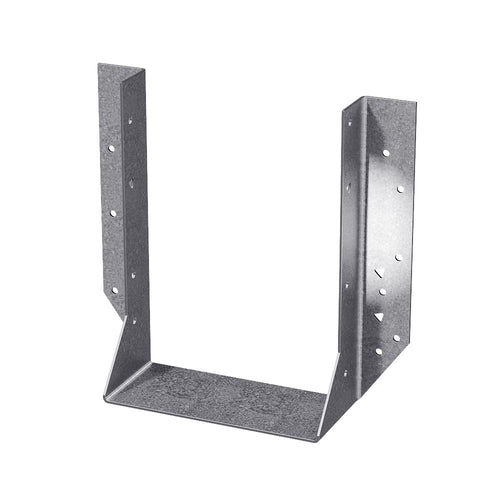

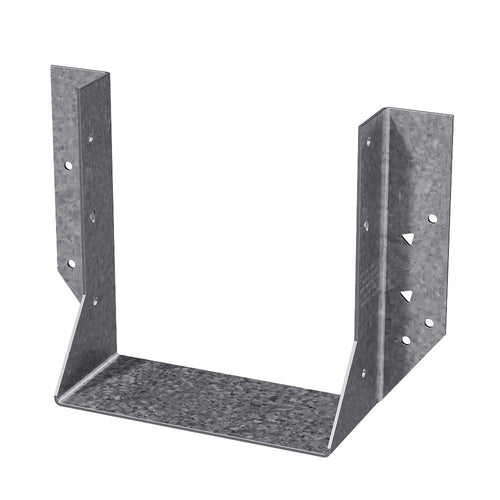

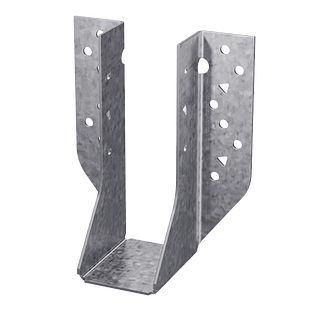

Simpson Strong HU Heavy Face-Mount Joist Hanger

Key Features

• Available with one flange concealed when the W dimension is less than 2 5/16" at 100% of the table load
• Tested, load rated and code compliant

Material

• 14 gauge

Finish

• Galvanized. Some products available in ZMAX^® coating; see Corrosion Information.

Installation

• Attach the hangers to concrete or GFCMU walls using hex-head Titen Turbo screws. Titen Turbo screw anchors for GFCMU (1/4" x 2 3/4" — Model TNT25234H) and for concrete (1/4" x 1 3/4" — Model TNT25134H) are not provided with the hangers.
• Drill and prep the holes according to the Installation Instructions provided with the packaging for Titen Turbo screw anchors.
• Caution: Oversized-diameter holes in the base material will reduce or eliminate the mechanical interlock of the threads with the base material and will reduce the anchor’s load capacity.
• Titen Turbo Installation Kits are available (Model TNTINSTALLKIT). A 3/16" x 6" SDS-plus drill bit is also available (Model MDPL01860SH).
• Installation on GFCMU — A minimum edge distance of 1 1/2" and a minimum end distance of 3 7/8" is required as shown in figure 1 for full table loads. For HU models installed with a 5/8" minimum face fastener edge distance, allowable download is 0.63 of table loads with no reduction for uplift loads.
• Installation on concrete — A minimum end and edge distance of 3" is required for full table loads. For edge distances of 1 3/4" minimum and a minimum end distance of 3", the allowable download is 0.90 of table loads with no reduction for uplift loads. For HU models installed with a 5/8" minimum face fastener edge distance, allowable download is 0.63 of table loads with no reduction for uplift loads.
